ENC28J60 Ethernet Module: Complete Guide, Specifications, Features, and Applications

Introduction

The ENC28J60 Ethernet Module is a small yet powerful component used to add wired network connectivity to various electronic and embedded systems. Manufactured by Microchip Technology, it is a dedicated Ethernet controller that follows the IEEE 802.3 Ethernet standard. It communicates with a microcontroller through an SPI (Serial Peripheral Interface) and allows the device to connect to a local area network (LAN) for fast and reliable data transfer.

Because of its low cost, compact size, and ease of integration, the ENC28J60 is widely used in industrial control systems, consumer electronics, and other networking-enabled products. It is also popular in prototyping and educational projects due to its straightforward setup and strong community support.

Key Features of ENC28J60

The ENC28J60 comes with a set of features that make it a practical choice for many developers:

• Fully compliant with IEEE 802.3 10BASE-T Ethernet standards.

• Uses SPI interface for easy communication with most microcontrollers.

• Works on 3.3V power supply (some modules have onboard regulators to work with 5V systems).

• Has an integrated MAC (Media Access Control) and PHY (Physical Layer).

• Operates in half-duplex mode for data transmission and reception.

• Low power consumption for energy-efficient designs.

• 8KB internal buffer for storing incoming and outgoing network data.

• Supports interrupt-driven communication for better performance.
• Available in different module designs such as breakout boards, shields, and custom PCB integrations.

Technical Specifications

Different Types of ENC28J60 Modules

The ENC28J60 IC itself is the same, but manufacturers offer it in various module forms to suit different needs:

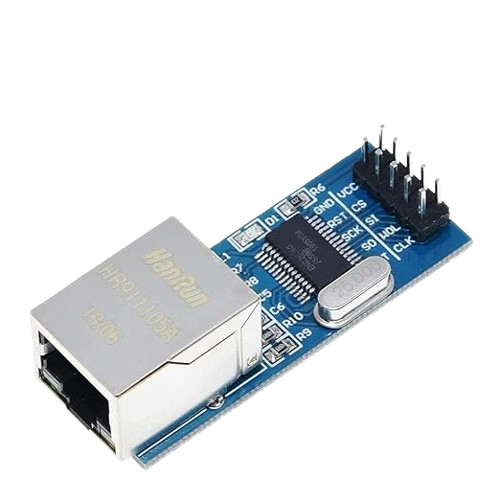

1. Standard ENC28J60 Breakout Board – Basic module with pins for SPI connection; ideal for breadboard use.

2. ENC28J60 with Onboard Voltage Regulator – Allows direct use with 5V logic boards like Arduino without damaging the chip.

3. ENC28J60 Shield – Plug-and-play design for development boards; no extra wiring required.

4. Custom PCB Integration – The chip is directly soldered onto a product’s custom PCB for production use.

How the ENC28J60 Works

The ENC28J60 handles the lower layers of Ethernet communication so the microcontroller doesn’t have to deal with complex physical signaling. Here’s how it works:

• The MAC layer processes Ethernet frames and manages addressing.

• The PHY layer converts data into electrical signals for the Ethernet cable.

• The SPI interface transfers data between the ENC28J60 and the microcontroller.

• Packets are temporarily stored in the internal buffer until they are processed or sent.
• A software-based TCP/IP stack running on the microcontroller handles higher-level protocols.

Common Applications

The ENC28J60 can be used in many types of devices that need wired Ethernet connectivity, such as:

• Industrial monitoring and control systems.
• Network-enabled security and access control devices.
• Remote monitoring tools and data loggers.
• Smart home appliances with LAN connection.
• Educational projects for networking and embedded systems.

Benefits of Using ENC28J60

• Affordable – Great performance at a low cost.

• Easy to Integrate – Works with almost any microcontroller via SPI.

• Reliable – Stable and consistent data transfer over wired networks.

• Small Size – Fits easily into compact product designs.

• Low Power Use – Suitable for energy-conscious applications.

Limitations to Consider

• Limited to 10 Mbps Ethernet speed.

• Operates only in half-duplex mode.

• Requires a microcontroller with enough memory to run a TCP/IP stack.

• Buffer size is limited to 8KB.

Choosing the Right ENC28J60 Module

Before buying or integrating an ENC28J60, check:

1. Voltage compatibility (3.3V vs 5V).
2. Form factor (shield, breakout, or custom PCB).
3. Availability of good documentation.
4. Quality of manufacturing for long-term reliability.

Example – ENC28J60 with a Microcontroller

Let’s look at a basic example of how the ENC28J60 can be used to send data over Ethernet.

Setup:

• ENC28J60 module connected to a microcontroller via SPI pins.
• Power supplied at 3.3V (or 5V if regulator is onboard).
• A TCP/IP library such as uIP or lwIP is used to handle network protocols.

Wiring Example:

• VCC → 3.3V (or 5V if supported)
• GND → GND
• SCK → Microcontroller SCK
• SO → Microcontroller MISO
• SI → Microcontroller MOSI
• CS → Chip Select Pin

Process:

• The microcontroller initializes the ENC28J60 via SPI.
• MAC and IP addresses are set.
• An HTTP request is sent to a local or remote server.
• The server’s response is received and processed by the microcontroller.

Conclusion

The ENC28J60 Ethernet Module is a reliable, cost-effective solution for adding wired networking to embedded systems. With features like an integrated MAC/PHY, low power use, and SPI communication, it strikes a balance between performance and simplicity. Whether used in educational projects, industrial devices, or consumer electronics, it remains a trusted choice for Ethernet connectivity.
